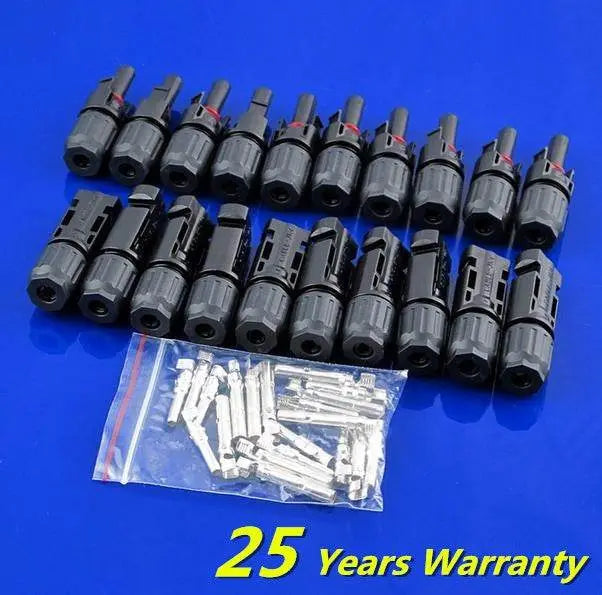

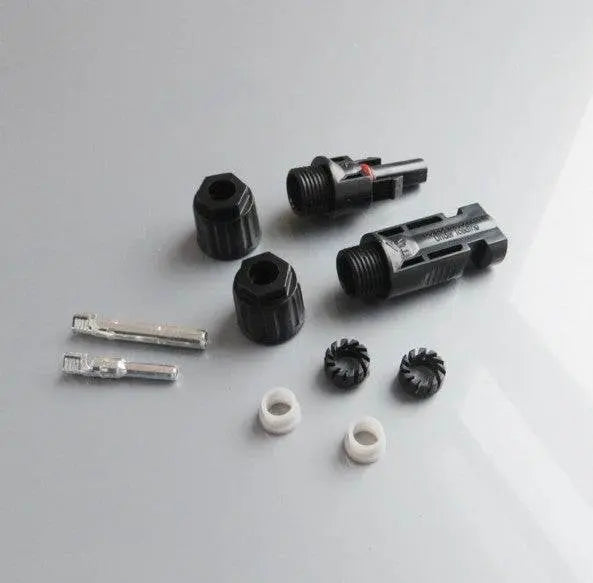

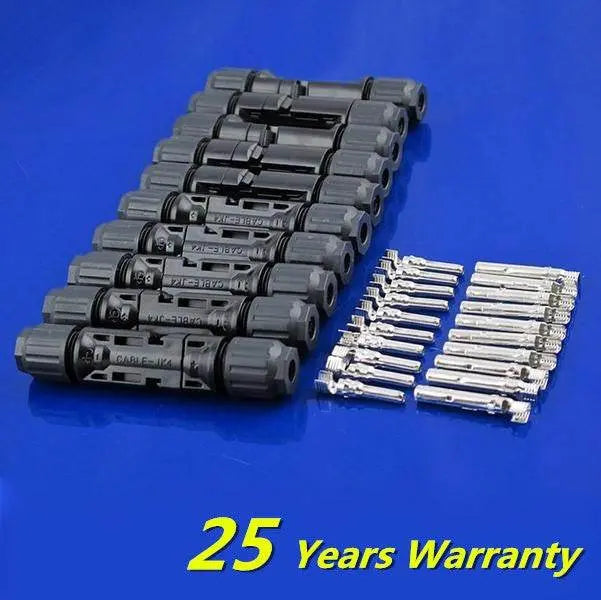

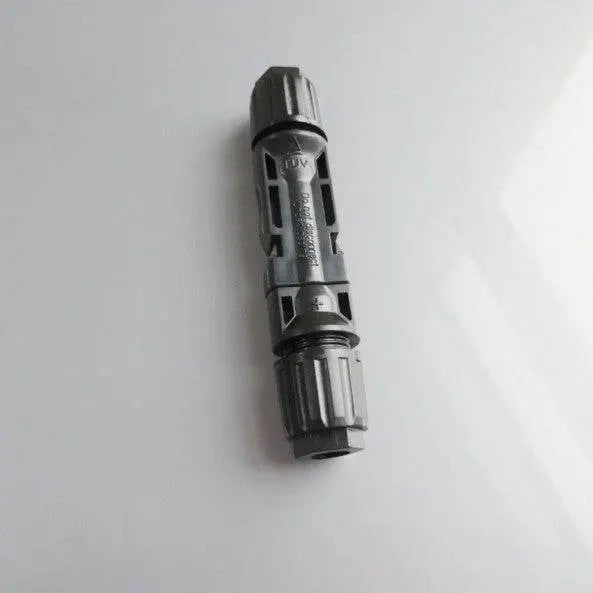

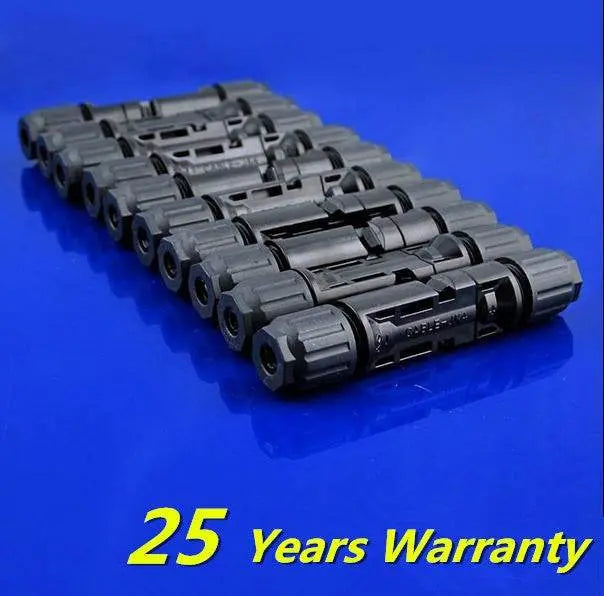

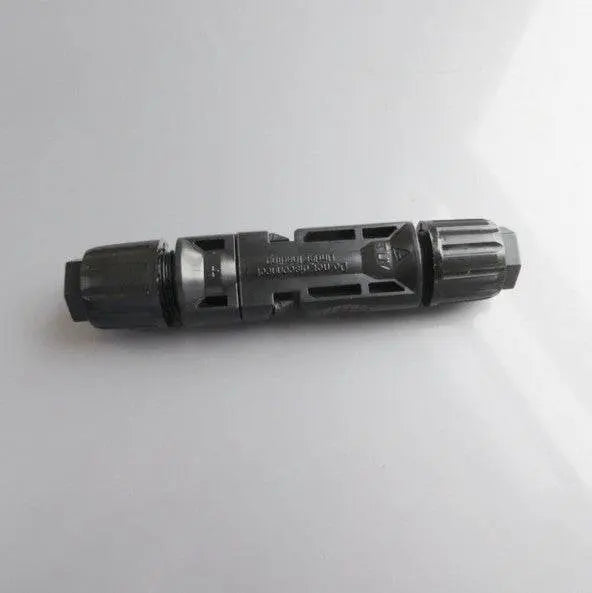

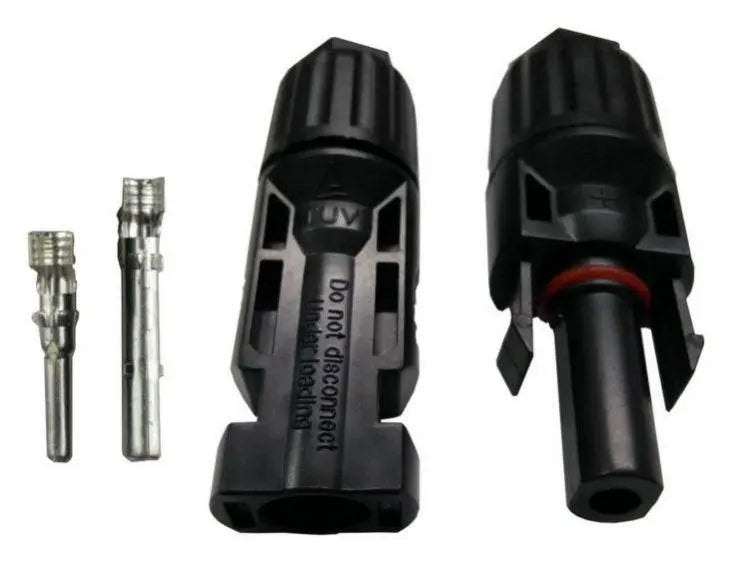

Introducing the High-Quality MC4 Connector Male Female for Solar Installations—the essential solution for achieving optimal performance in your solar energy systems. Designed with durability and efficiency in mind, this connector allows you to connect solar panels in series, ensuring maximum energy output.
Key Features:
-
High Voltage Rating: Operates safely at up to 1000V DC, providing confidence in your energy connections.
-
Robust Construction: Crafted from high-quality PPO and copper materials, this connector boasts exceptional resistance to environmental challenges.
-
IP67 Rated: Offers a high level of protection against dust and water ingress, which ensures longevity and reliability.
-
Wide Compatibility: Suitable for cable cross-sections of 2.5mm²-6.0mm² (14AWG-10AWG), making it versatile for various installations.
-
Exceptional Performance: Features a contact resistance of just 5mΩ and a proof voltage of DC 8KV, delivering outstanding electrical performance.
Specifications:
- Model Number: MC4
- Temperature Range: -40 to +85 degrees Celsius
- Flame Class: UL94V-0
- Connector Weight: 0.03 kgs (0.07 lbs)
- Carton Weight: 15.00 kgs (33.07 lbs)
- Carton Size: 60cm x 38cm x 15cm (23.62in x 14.96in x 5.91in)
Invest in the High-Quality MC4 Connector Male Female for Solar Installations today and enhance the efficiency and reliability of your solar setups. Its exceptional engineering ensures you can trust it to perform in various conditions, making it the perfect choice for all your solar energy needs. Don’t wait—experience the difference!
